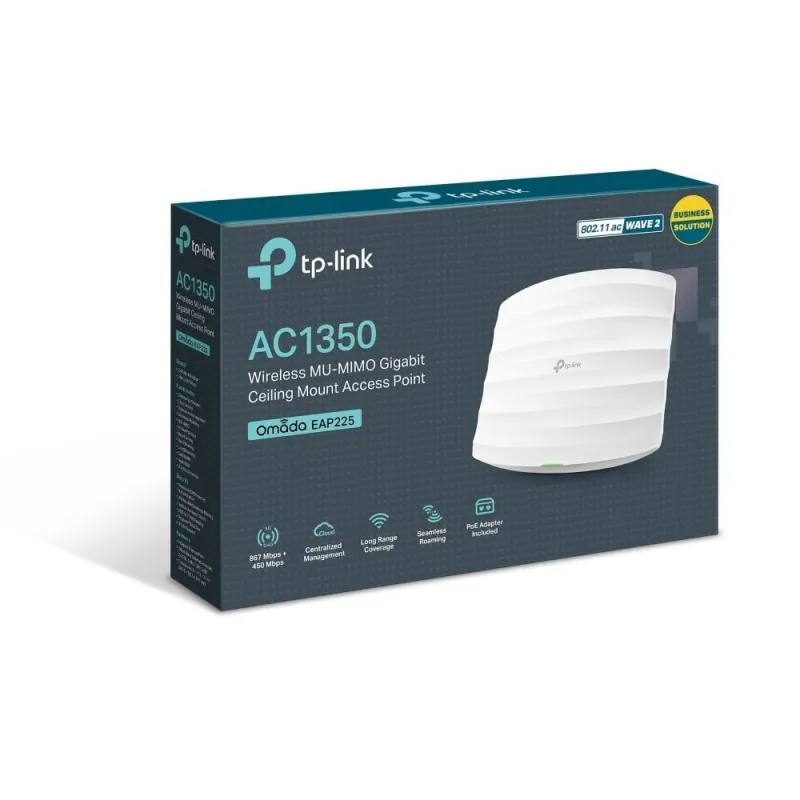

TP-Link Networks Tp-Link EAP225 1350Mbps Gigabit Access Point

Arabirim

Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE)

Fiziksel Güvenlik Kilidi

Yes

Buton

Reset

Güç Kaynağı

• 802.3af/at PoE
• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

Güç Tüketimi

EU: 9.7W
US: 12.1W

Boyutlar ( W X D X H )

8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Anten Tipi

3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi

Montaj

Ceiling /Wall Mounting (Kits included)

Kablosuz Standartlar

IEEE 802.11ac/n/g/b/a

Frekans

2.4 GHz and 5 GHz

Bağlantı Hızı

• 5 GHz:Up to 867 Mbps
• 2.4 GHz:Up to 450 Mbps

Kablosuz Fonksiyonlar

• Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band,7 for 5GHz band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Kablosuz Güvenlik

• Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support

İletim Gücü

• CE:
≤20 dBm(2.4 GHz, EIRP)
≤23 dBm(5 GHz, EIRP)
• FCC:
≤24 dBm(2.4 GHz)
≤22 dBm(5 GHz)

Omada App

Yes

Centralized Management

• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
• Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)

Cloud Access

Yes, through
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20)

Eposta Uyarı

Yes

LED Açık/Kapalı Kontrolü

Yes

MAC Erişim Kontrolü Yönetimi

Yes

SNMP

v1,v2c
